High Performance Water Gate Valve , Resilient Seated Wedge Gate Valve

High Performance Water Gate Valve , Resilient Seated Wedge Gate Valve

Products - Water Gate Valve
  • Highlight

    ductile iron gate valve

  • Operator
    Handwheel
  • Valve Body
    Ductile Iron GJS500-7
  • Wedge
    Ductile Iron With Vulcanized Rubber
  • Guide
    Nylon 66
  • Color
    Red, Blue
  • Powder
    WRAS Approved
  • Place of Origin
    China
  • Brand Name
    OEM
  • Certification
    ISO9001, EN1074-2
  • Model Number
    GBHX, GBCX, GBBX
  • Document
    Product Brochure PDF
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Plywood Cases
  • Delivery Time
    15-60 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Based On Order

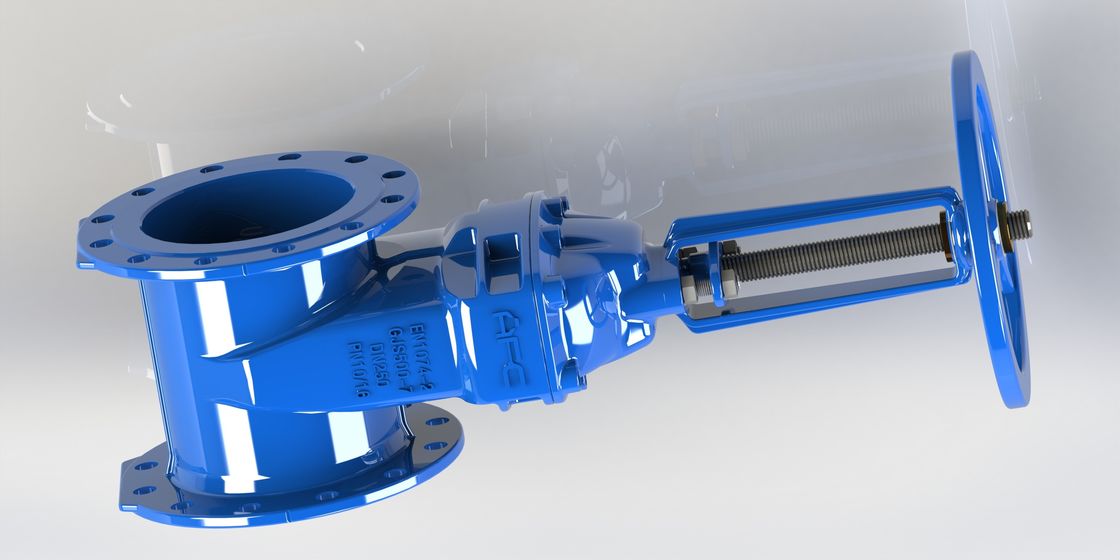

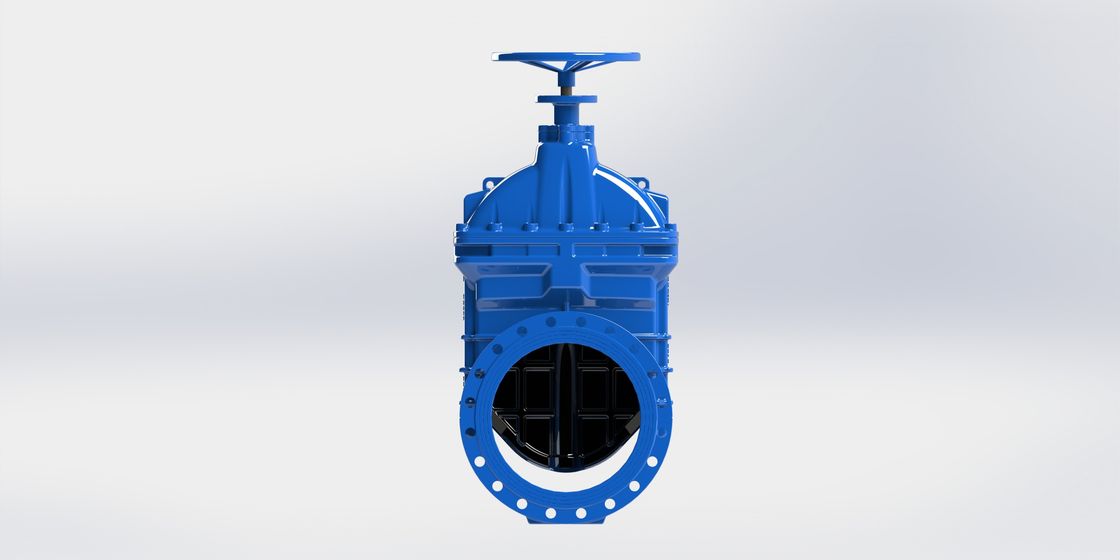

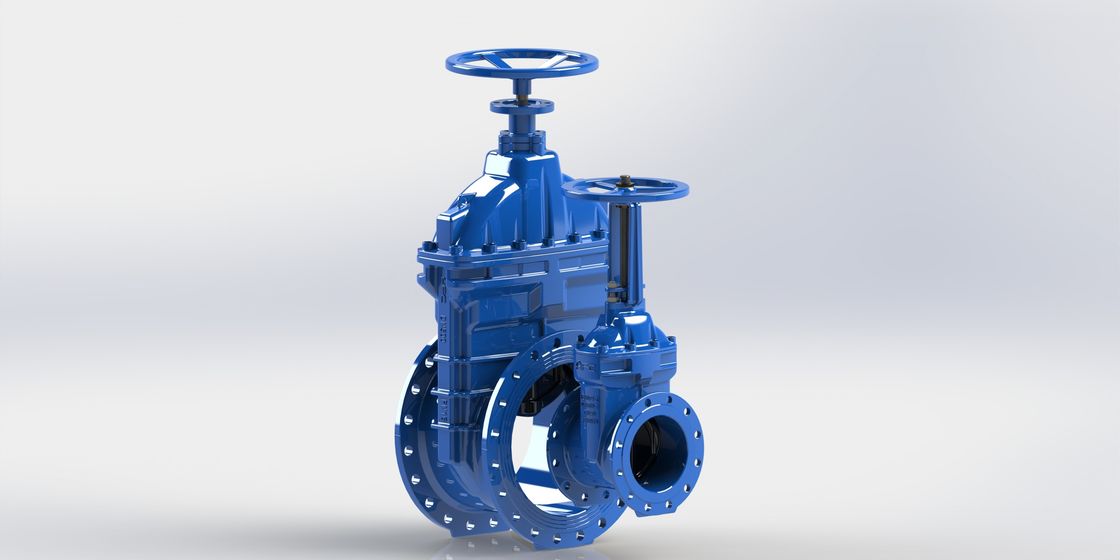

High Performance Water Gate Valve , Resilient Seated Wedge Gate Valve

  • High Performance Water Gate Valve , Resilient Seated Wedge Gate Valve
  • High Performance Water Gate Valve , Resilient Seated Wedge Gate Valve
  • High Performance Water Gate Valve , Resilient Seated Wedge Gate Valve
Get Price Contact Now

BS5163 Water Gate Valve, Low Operation Torque, Resilient Seated Wedge​









Features:



1. Conform BS5163, EN1074-1 and EN1074-2 standard.

2. Over torque can be 5 times without deformation.

3. External pressure test to prevent vaccum happnened when water stops in pipe line. No sucking dirt or sand from outside of the valve.

4. Low operation torque.

5. Online repair by 5 pcs of o-rings for stem seal.

6. AWWA flange is avaliable.



Spec:

Size DN50-DN600
Working Temperature - 10C- 80C
Flange PN10/16
Flow Media Water, Sewage Water
Face to Face EN558-1


Production Process:



1. Sandblasitng - Clean the rusty casting and give enough roughness for casting.

2. Coating - Fusion Bonded EPOXY - WRAS, NSF approved

3. Assembling - By qualified workers

4. Testing - 100% tested with shell (1.5 * PN) and seat test (1.1 * PN)

5. Packing - Plywood crates for exporting business.









High Performance Water Gate Valve , Resilient Seated Wedge Gate Valve 0

DN L H1 H2 ΦB ΦD ΦK N-Φd C ΦF
PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16
50 178 240 255 99 165 125 4-Φ19 19 180
65 190 258 280 118 185 145 4-Φ19 19 180
80 203 293 311 132 200 160 8-Φ19 19 200
100 229 326 340 156 220 180 8-Φ19 19 200
125 254 377 386 184 250 210 8-Φ19 19 250
150 267 414 430 211 285 240 8-Φ23 19 250
200 292 510 550 266 340 295 8-Φ23 12-Φ23 20 300
250 330 585 628 319 395 405 350 355 12-Φ23 12-Φ28 22 350
300 356 663 703 370 445 460 400 410 12-Φ23 12-Φ28 24.5 350
350 381 880 930 429 505 520 460 470 16-Φ23 16-Φ28 24.5 26.5 450
400 406 990 1040 480 565 580 515 525 16-Φ28 16-Φ31 24.5 28 450
